Presentingthe safest tank ever developed for bulk storage

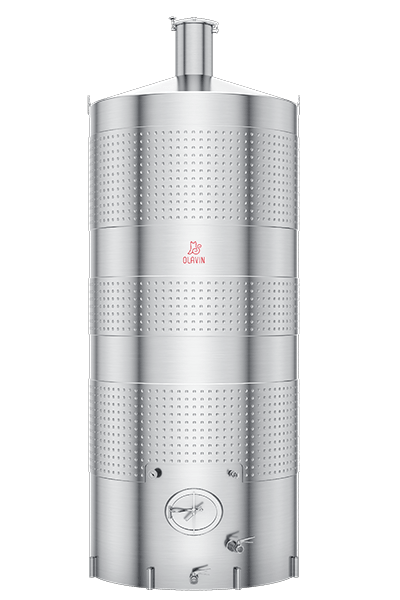

Plinth Mounted Tank
Code: I
Plinth Mounted Tank
Features
Plinth Mounted Tank
Features
| Product Name: | Plinth Mounted Tank |
| Product Code: | I |
| Inner Surface: | 2B |
| Outer Surface: | Oil brushed |
| Inner Weld Seam Treatment: | Olavin Surpro Finish (Ra ≤ 0.6μm / 24μin) |
| Outer Weld Seam Treatment: | Retain weld bead height, pickled and passivated |
| Material: | ☑ All SS304 [Economical] ☑ Roof & bottom SS316, others SS304 [Standard] ☑ Wetted parts SS316, others SS304 [Optional] |
| Jacket: | ☑ Olavin Dypple Jacket ☑ Olavin Channel Jacket |
| Stackable: | No |
| Forkliftable: | No |
| Transportable: | No |
| Used for: | ☑ Fermentation ☑ Storage ☑ Aging ☑ Bottling |
| Connection: | ☑ Tri-clamp ☑ BSM ☑ DIN |
Plinth Mounted Tank
Capacities and Dimensions
Plinth Mounted Tank
Capacities and Dimensions
| Volume Litre | Di mm | H1 mm | H mm |
|---|---|---|---|
| 20000 | 2240 | 4758 | 5790 |
| 30000 | 2610 | 5539 | 6640 |
| 60000 | 2800 | 9820 | 11209 |
| 100000 | 3600 | 9820 | 11460 |
* Customization is available.
| Volume Gal | Di inch | H1 inch | H inch |
|---|---|---|---|
| 5200 | 88 | 187 | 228 |
| 8000 | 103 | 218 | 261 |
| 16000 | 110 | 387 | 441 |
| 26000 | 142 | 387 | 451 |
* Customization is available.
Di – Diameter
H1 – Shell Height
H – Total Height
* Di – Diameter | * H1 – Shell Height
* H – Total Height
