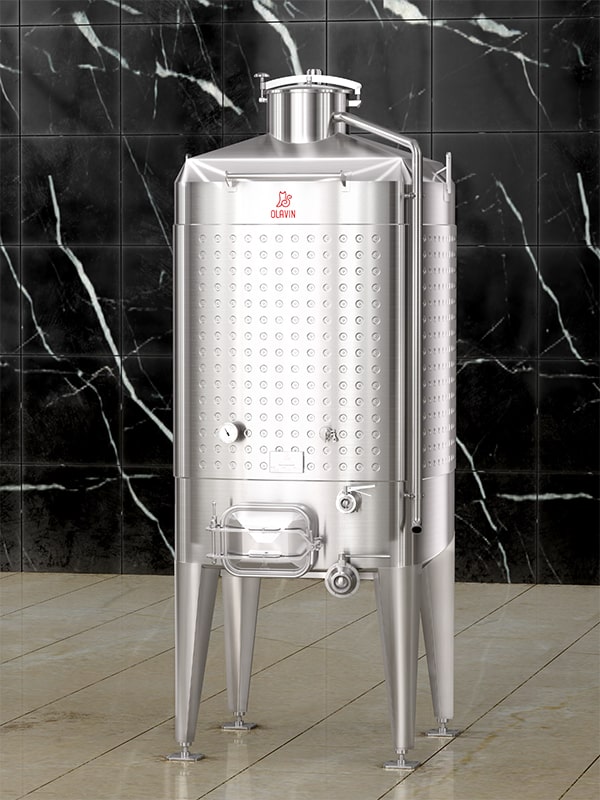

Diamond Square Fermenter

Code: G

Code: G

Product Name:	Diamond Square Fermenter
Product Code:	G
Inner Surface:	2B
Outer Surface:	Oil brushed
Inner Weld Seam Treatment:	Olavin Surpro Finish (Ra ≤ 0.6μm / 24μin)
Outer Weld Seam Treatment:	Retain weld bead height, pickled and passivated
Material:	☑ All SS304 [Standard] ☑ Wetted parts SS316, others SS304 [Optional]
Jacket:	☑ Olavin Dypple Jacket
Stackable:	No
Forkliftable:	No
Transportable:	No
Used for:	☑ Fermentation ☑ Storage ☑ Aging ☑ Bottling
Connection:	☑ Tri-clamp ☑ BSM ☑ DIN

Volume Litre	W mm	L mm	H1 mm	H2 mm	H mm
3000	1420	1420	1500	1050	3145
5000	1670	1670	1828	1050	3505
8000	1930	1930	2219	1050	3885
10000	2100	2100	2438	1050	4110

* Customization is available.

Volume Gal	W inch	L inch	H1 inch	H2 inch	H inch
500	56	56	59	41	124
800	66	66	72	41	138
1000	76	76	87	41	153
1300	83	83	96	41	162

* Customization is available.

W – Max. Width

L – Max. Length

H1 – Shell Height

H2 – Bottom Net Height

H – Total Height

* W – Max. Width | * L – Max. Length
* H1 – Shell Height | * H2 – Bottom Net Height
* H – Total Height
