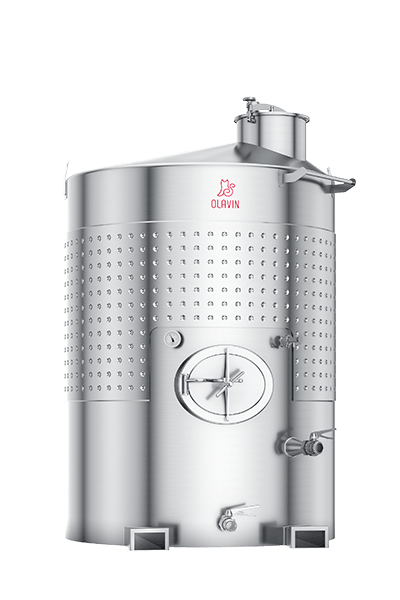

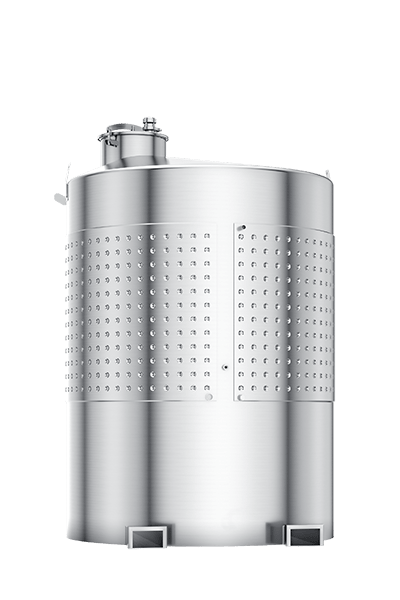

Moving a tank is easier than you think
Fork Tank
Code: C
Moving a tank is easier
than you think
Fork Tank
Code: C
Fork Tank
Features
Fork Tank
Features
| Product Name: | Fork Tank |
| Product Code: | C |
| Inner Surface: | 2B |
| Outer Surface: | Oil brushed |
| Inner Weld Seam Treatment: | Olavin Surpro Finish (Ra ≤ 0.6μm / 24μin) |
| Outer Weld Seam Treatment: | Retain weld bead height, pickled and passivated |
| Material: | ☑ All SS304 [Standard] ☑ Wetted parts SS316, others SS304 [Optional] |
| Jacket: | ☑ Olavin Dypple Jacket ☑ Olavin Channel Jacket |
| Stackable: | No |
| Forkliftable: | Yes |
| Transportable: | Yes |
| Used for: | ☑ Fermentation ☑ Storage ☑ Aging ☑ Bottling |
| Connection: | ☑ Tri-clamp ☑ BSM ☑ DIN |
Fork Tank
Capacities and Dimensions
Fork Tank
Capacities and Dimensions
| Volume Litre | Di mm | L mm | H1 mm | H mm |
|---|---|---|---|---|
| 2000 | 1240 | 1455 | 1610 | 2286 |
| 3000 | 1510 | 1785 | 1610 | 2286 |
| 5000 | 1800 | 2015 | 1891 | 2656 |
| 6000 | 1980 | 2195 | 1891 | 2656 |
* Customization is available.
| Volume Gal | Di inch | L inch | H1 inch | H inch |
|---|---|---|---|---|
| 500 | 49 | 57 | 63 | 90 |
| 800 | 59 | 70 | 63 | 90 |
| 1300 | 71 | 79 | 74 | 105 |
| 1600 | 78 | 86 | 74 | 105 |
* Customization is available.
Di – Diameter
L – Fork Pocket Length
H1 – Shell Height
H – Total Height
* W – Max. Width | * L – Fork Pocket Length
* H1 – Shell Height | * H – Total Height
